Quick Details Place of Origin:Zhejiang, ChinaBrand Name:SIERJIA Model Number:1902certificate:CE,ISO Type:Water MetersProduct name:Ultrasonic hot water meter brass pipe section Supply Ability Supply Ability 100000 Piece/Pieces per Month The water meter can be produced in a hurry Packaging & Delivery Packaging Details Conventional packing of water meter:OUTER CARTON: 10 pcs/ctn INNER CARTON: 1 pc/ctn Port Ningbo Lead Time: 30days
APPLICATION ______Ultrasonic hot water meter brass pipe section_____________
Measuring the volume of cold potable water passing through the pipeline
·Material:brass ·Applicable scene:home,apartment,garden housing ,ground,commercial,residential building,malls,household portable,garden,domestic residential ·Technical data conform to international standard ISO 4064. ·Communication:rs485 modbus,LoRa ·Fitting:Pressure sensor,battery,lcd display,reading device,data logger,liquid turbine,user interface unit,reading device,actuator,connection fittings,Valve ·No mechanical movable parts,Impurities in water can’t be affected, long service life and high accuracy ·Wide measurement range. Very small flow can be measured. ·Various alarm functions:Battery voltage can alarm,empty tubes or pipes that are not full of water,transducer fault alarm and more.
·Low-power design and the use of high-energy batteries, can work for 8 years and more. ·The communication interface is Lora or Rs485, can achieve remote real-time monitoring and management on the LAN. ·Threaded connection digital water meter, used in industrial pipelines, suitable for high pressure environment, can choose whether to install pulse output ·With remote transmission system software to support reading and monitoring ·Provide a complete software metering and charging solution
WORKING CONDITION______________________________________________ 1.The ultrasonic water meter collects the flow in the pipeline, and the pressure data is uploaded to thecloud servioe platform through RTU. 2.Sudden change alarm of pressure and flow. MAXIMUM PERMISSIBLE ERROR____________________________________ In the lower zone from Qmin inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%.

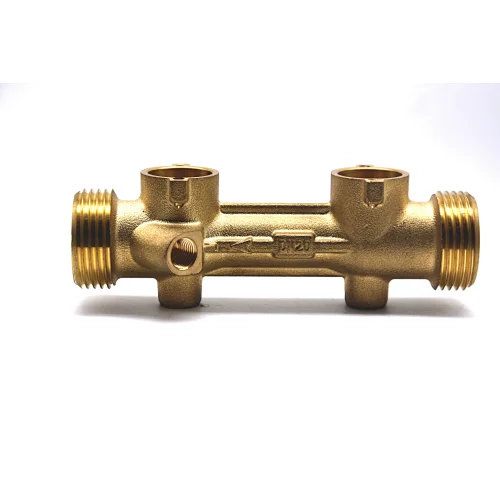

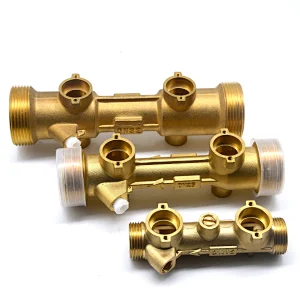

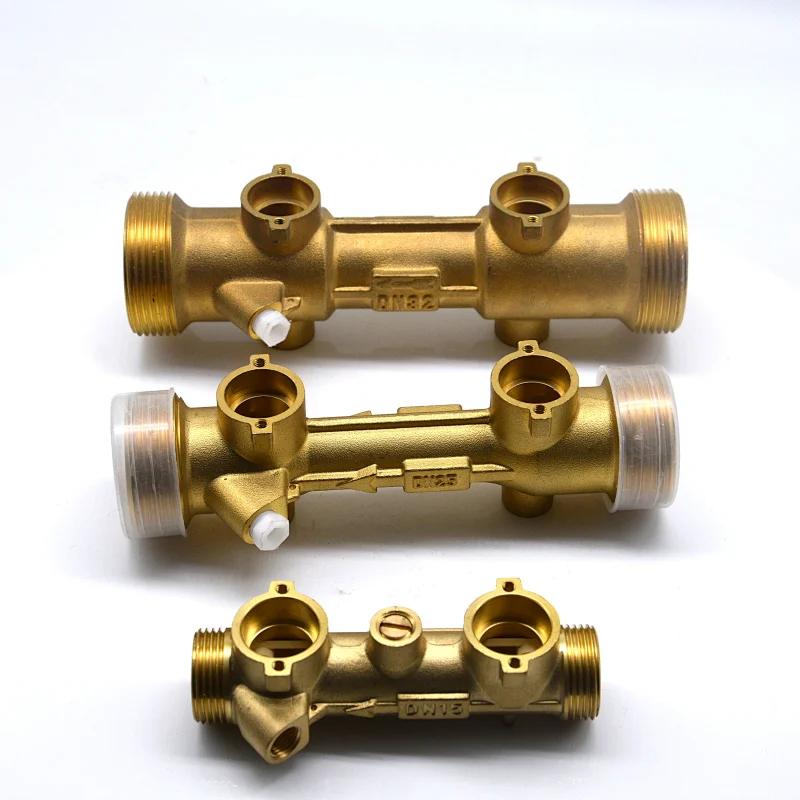

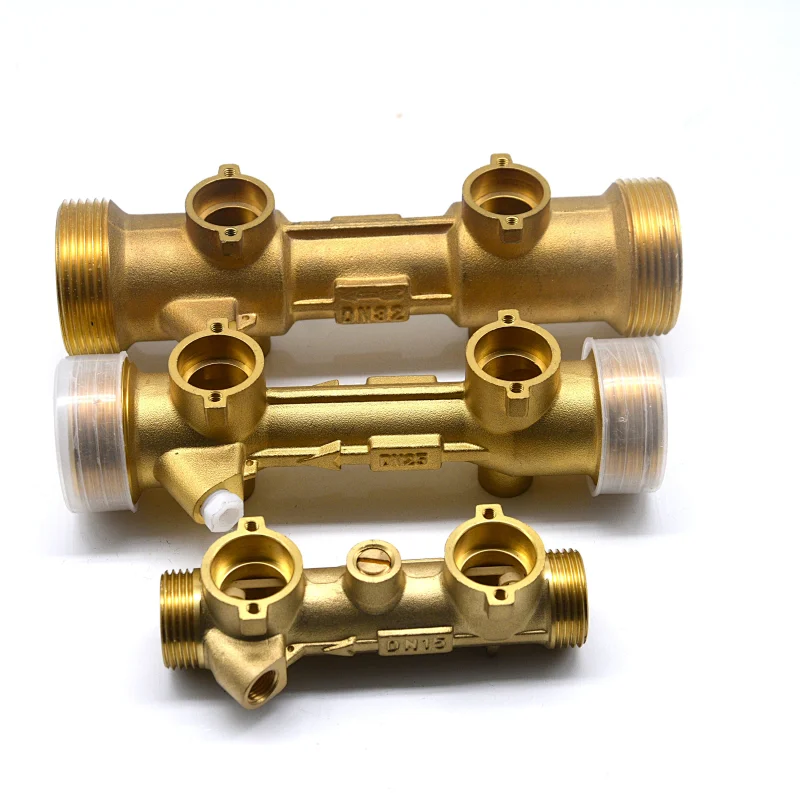

High Precision Ultrasonic hot water meter brass pipe ultrasonic water meter body
