Quick Details
Place of Origin:Zhejiang, China Brand Name:SIERJIA
Model Number:water meter certificate:ISO

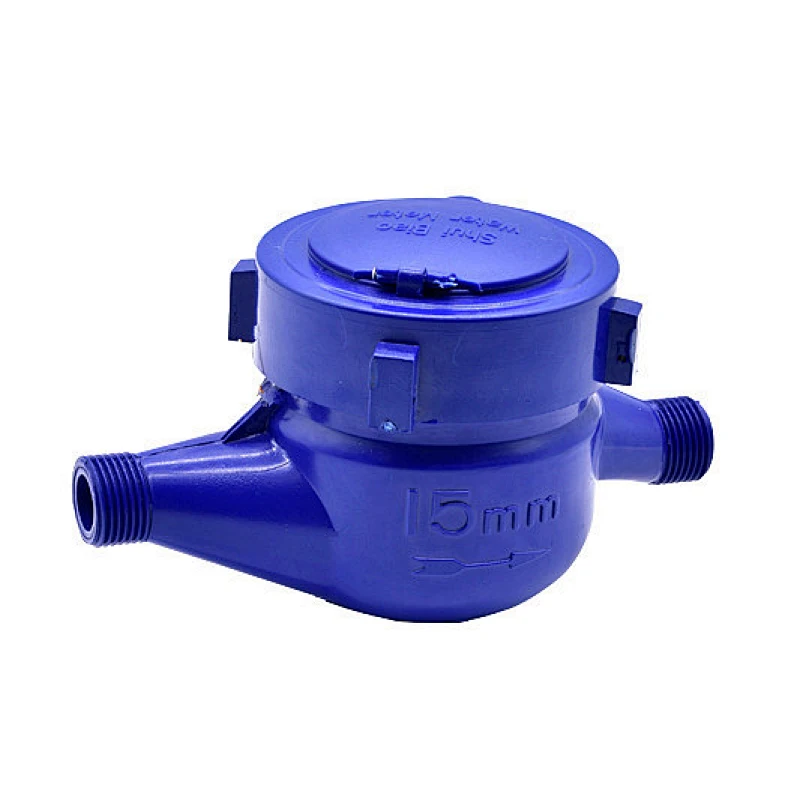

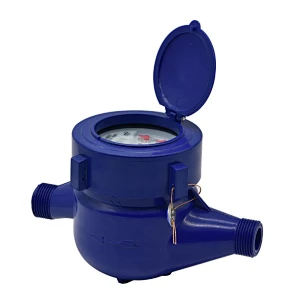

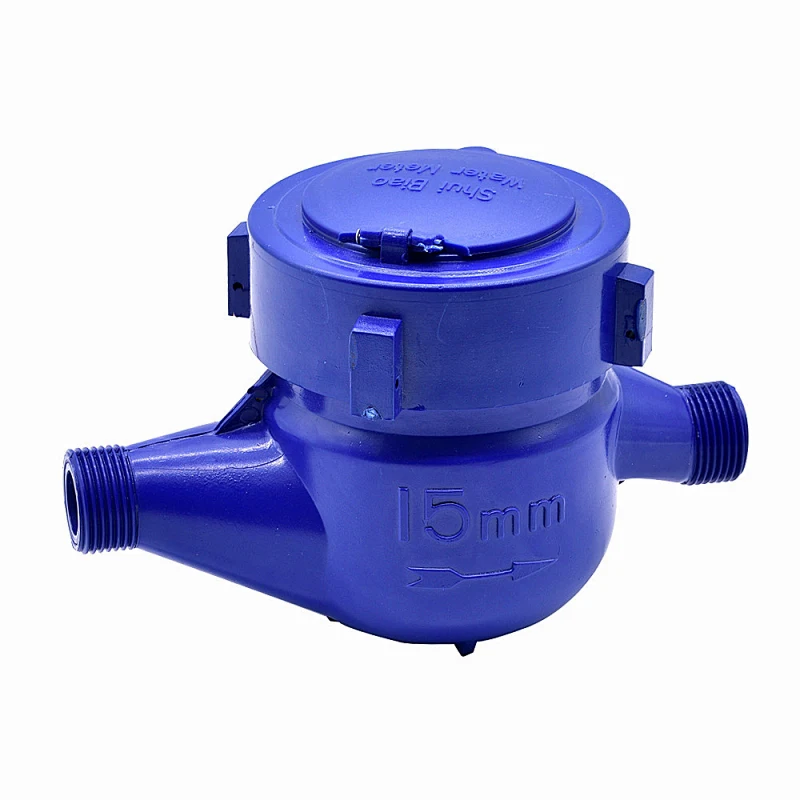

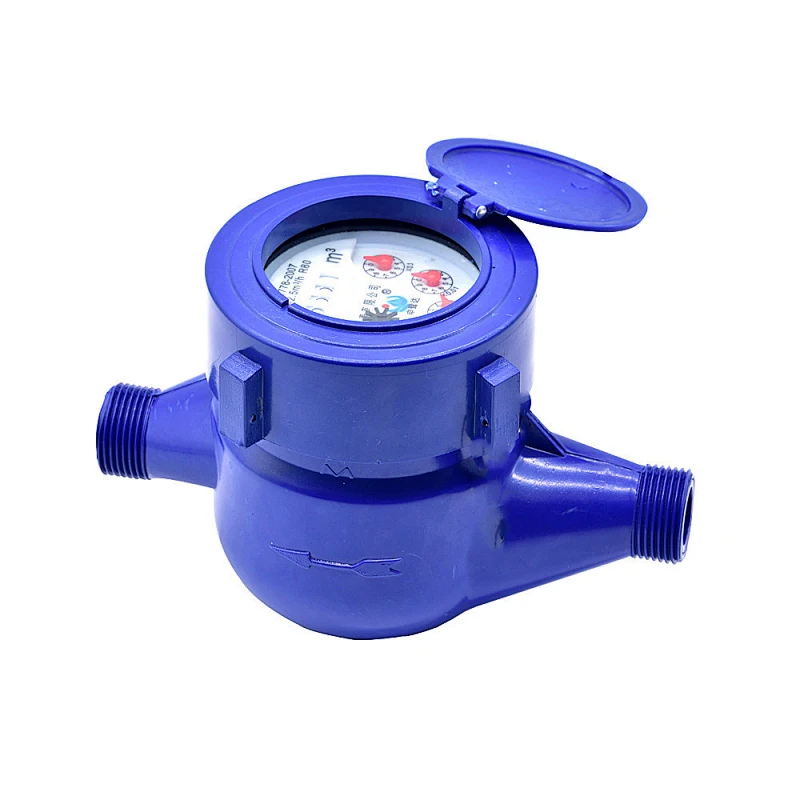

Type:Water Meters Product name:Multi-jet Type Wet-Dial Mechanical Cold Water Meter
Supply Ability
Supply Ability 100000 Piece/Pieces per Month The water meter can be produced in a hurry
Packaging & Delivery
Packaging Details Conventional packing of water meter:OUTER CARTON: 10 pcs/ctn
INNER CARTON: 1 pc/ctn
Port Ningbo
Lead Time: 30days
APPLICATION _______Household/Resident_____________
Measuring the volume of cold potable water passing through the pipeline
FEATURES ________________________________________________________
Rotary wane wet dial plastic liquid sealed ABS water meteris used to measure the total quantity of potable water,consumed in household or a resident unit,passing through the pipeline
meters,Measuring accuracy is up to class B of ISO4064 Standard
series universal use
WORKING CONDITION______________________________________________
Water temperature≤50 for cold water meter
≤90 for hot water meter
Water pressure≤1MPa or 1.6MPa optional
(10bar or 16bar optional)
MAXIMUM PERMISSIBLE ERROR____________________________________
In the lower zone from Qmin inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%.

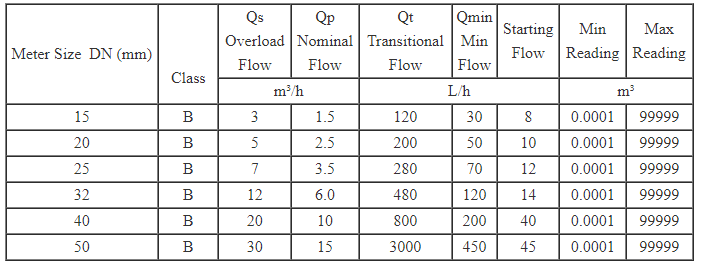

MAIN TECHNICAL DATA____________________________________________
