Model NO.
2401
Supply Ability
50000 / Month
Country of Origin
Zhejiang, China
Stock Time
30 Days
Quantity:

Quick Details

Place of Origin: Zhejiang, China              Brand Name: SIERJIA
Model Number: SRJ-06                        certificate: Not need
Type:Water Meters                          Product name: water meter Actuator
Supply Ability
Supply Ability       100000 Piece/Pieces per Month The water meter can be produced in a hurry
Packaging & Delivery
Packaging Details   Conventional packing of water meter:OUTER CARTON: 10 pcs/ctn
INNER CARTON: 1 pc/ctn
Port                 Ningbo
Lead Time:          30days


APPLICATION  ____  __High quality automatic water valve controlled dc motor_______________


FEATURES ________________________________________________________
1. Rated working voltage: 3.6V
2. Working voltage range: 2.5-5V  (the higher the voltage, the greater the torque and the shorter the service life)
3. No load working current under rated working voltage: < 25mA (23 ℃ under normal temperature)
4. Locked rotor current under rated working voltage: about 450 mA (300 motor)
5. Output torque under rated working voltage: ≥ 2.5N.m
6. On (off) time under rated working voltage: ≤ 13s
7. Reduction ratio: 3500:1 (applicable to dn15-25)

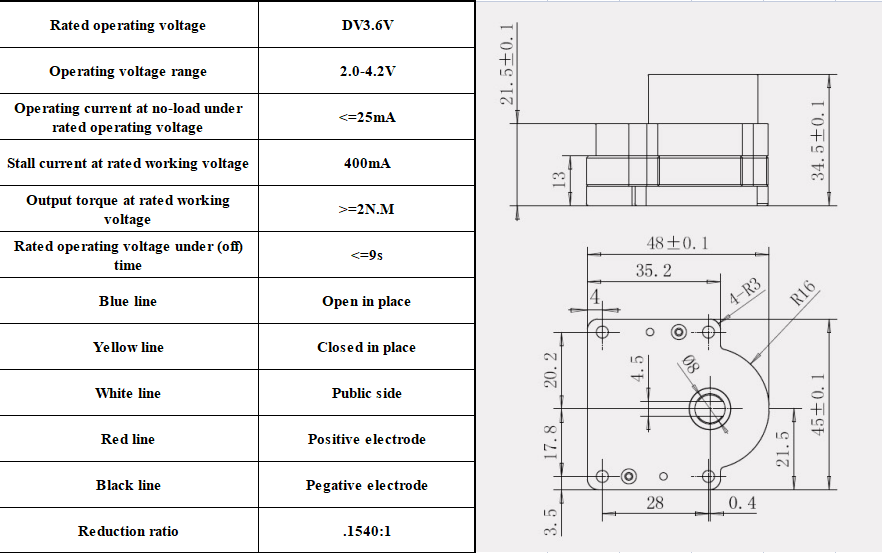

MAIN TECHNICAL DATA____________________________________________
