Quick Details
Place of Origin:Zhejiang, China Brand Name:SIERJIA
Model Number:LXSG-13D1b certificate:CE

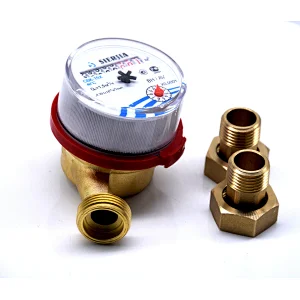

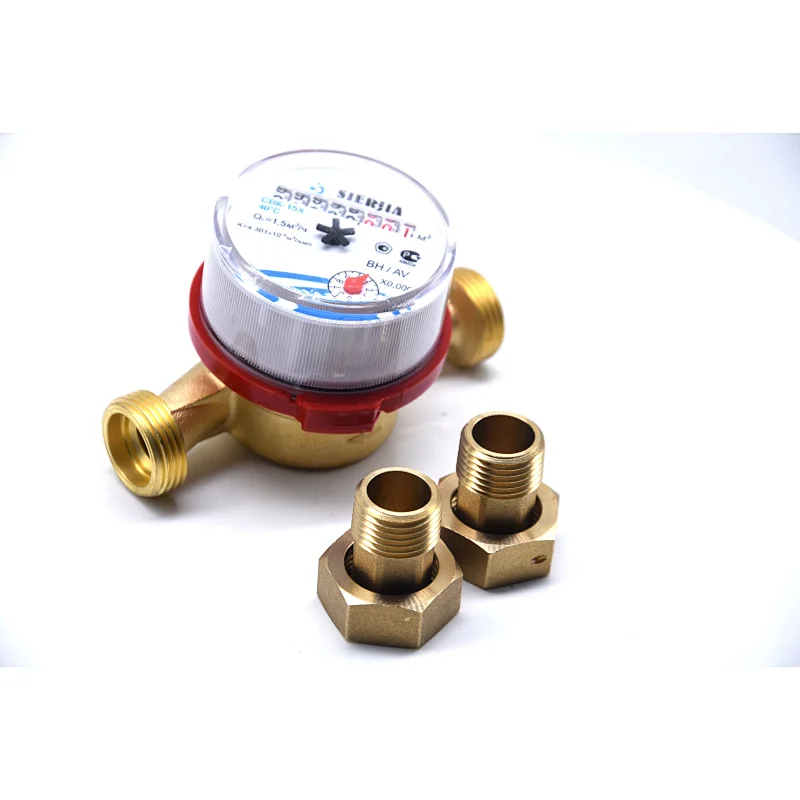

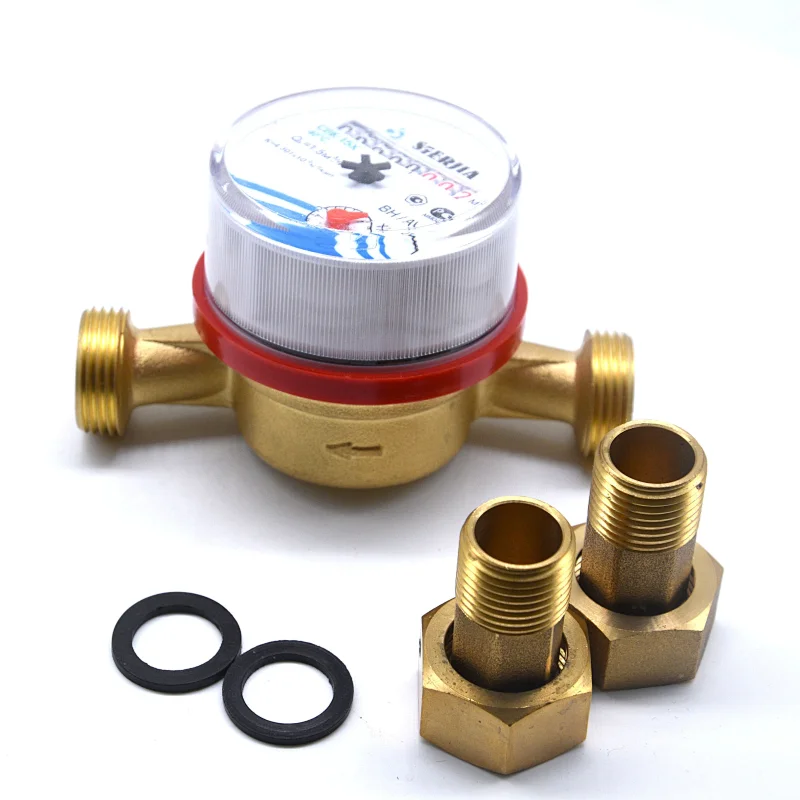

Type:Water Meters Product name: single jet cold water meter
Supply Ability
Supply Ability 100000 Piece/Pieces per Month The water meter can be produced in a hurry
Packaging & Delivery
Packaging Details Conventional packing of water meter:OUTER CARTON: 10 pcs/ctn
INNER CARTON: 1 pc/ctn
Port Ningbo
Lead Time: 30days
APPLICATION _ jet vane cold water mete_______
Measuring the volume of cold potable water passing through the pipeline
FEATURES ________________________________________________________
1.Dry-dial,Magnetic drive,Resistance to exterior magnet interference
2.Single-jet
3.Selected high quality materials for steady & reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
WORKING CONDITION______________________________________________Water temperature≤50 for cold water meter
Water pressure≤1MPa or 1.6MPa optional
(10bar or 16bar optional)
MAXIMUM PERMISSIBLE ERROR____________________________________
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%
MAIN TECHNICAL DATA____________________________________________
