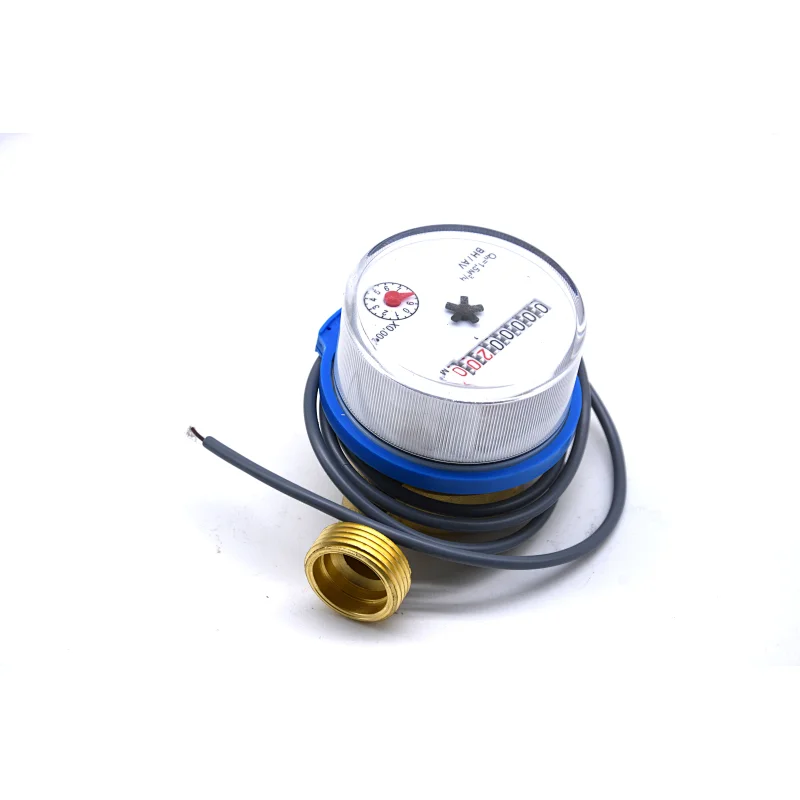

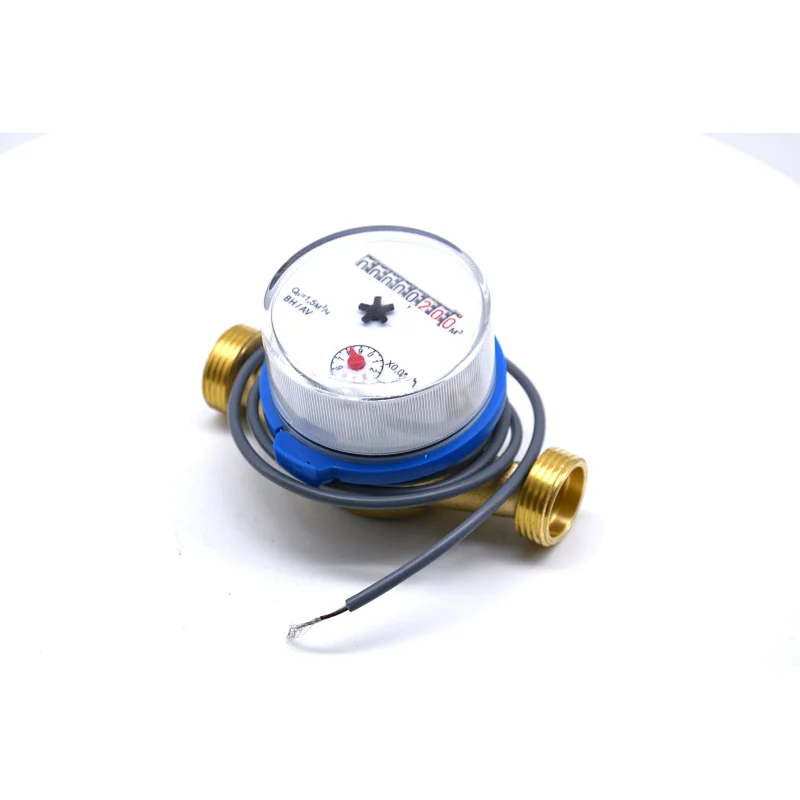

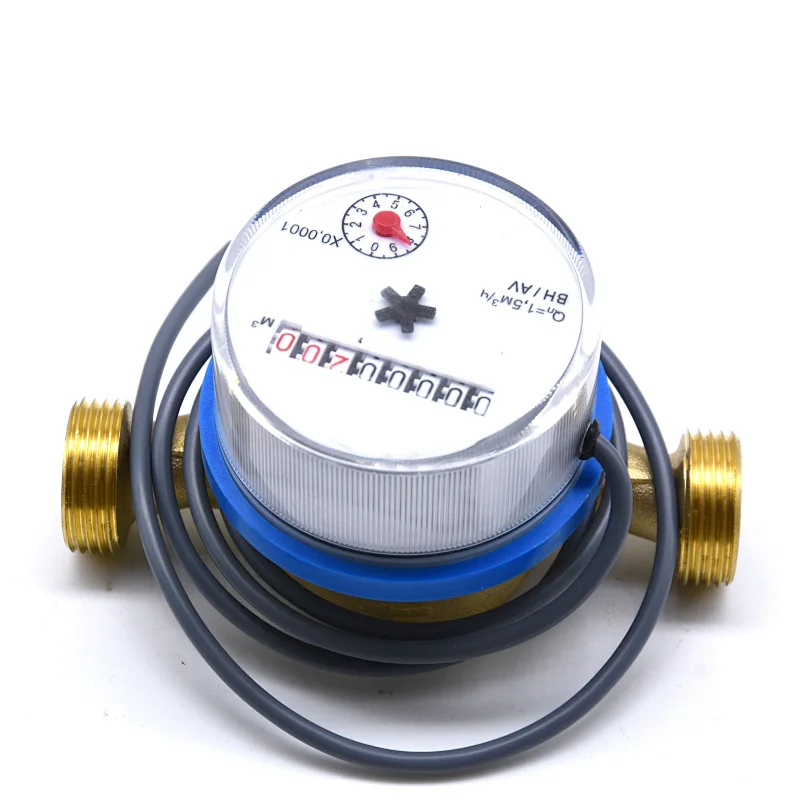

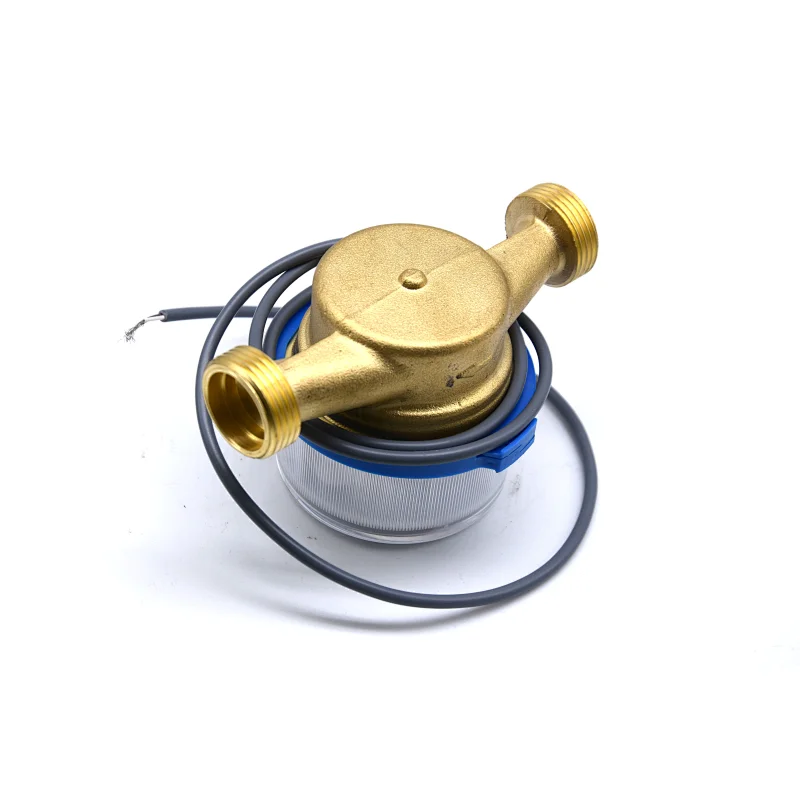

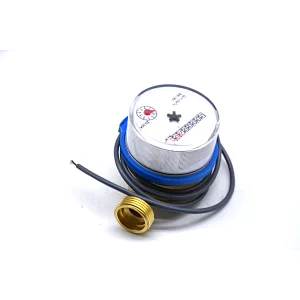

Single Jet Dry Type Pulse Output Transmission Domestic Water Meter
Single Jet Dry Type Pulse Output Transmission Domestic Water Meter
Single Jet Dry Type Pulse Output Transmission Domestic Water Meter
счетчик воды с импульсным выходом
Single Jet Dry Type Pulse Output Transmission Domestic Water Meter
Single Jet Dry Type Pulse Output Transmission Domestic Water Meter
Single Jet Dry Type Pulse Output Transmission Domestic Water Meter

Single Jet Dry Type Pulse Output Transmission Domestic Water Meter

Model NO.
2701
Price:
US $ 6.50-6.70
Delivery:
FCA,FOB,EXW,CFR,C&am
Supply Ability:
10000 / Month
Country of Origin:
ZHEJIANG
Stock Time:
30 Days
Quantity:

Quick Details
Place of Origin:Zhejiang, China              Brand Name:sierjia
Model Number:LXS-13D~32D          certificate:CE
Type:Water Meters                             Product name: Single Jet Vane Wheel Dry Type Pulse Output Water Meter
Supply Ability
Supply Ability       100000 Piece/Pieces per Month The water meter can be produced in a hurry
Packaging & Delivery
Packaging Details   Conventional packing of water meter:OUTER CARTON: 10 pcs/ctn
INNER CARTON: 1 pc/ctn
Port                 Ningbo

Lead Time:          30days



APPLICATION  __pulse output water meter______

Measuring the volume of cold potable water passing through the  pipeline

FEATURES ________________________________________________________

a)Single-jet,dry-dial,free rotating register,small size and lighet weight;

b)Magnetic drive,Resistance to exterior magnet interference;

c)Keep the reading clear in a long time;

d)Measuring conform to ISO4064 class B;

e)Good looking.


WORKING CONDITION______________________________________________

Working condition

Water temperature:0.1℃~90℃

Water pressure:≤1.0MPa(1.6MPa)

Maximum permissible errors


MAXIMUM PERMISSIBLE ERROR____________________________________

(1). In lower zone from incluing the min flow to excluding the transitional flow:±5%.

(2). Inupper zone from incluing the transitional flow to including the max flow:±2%.

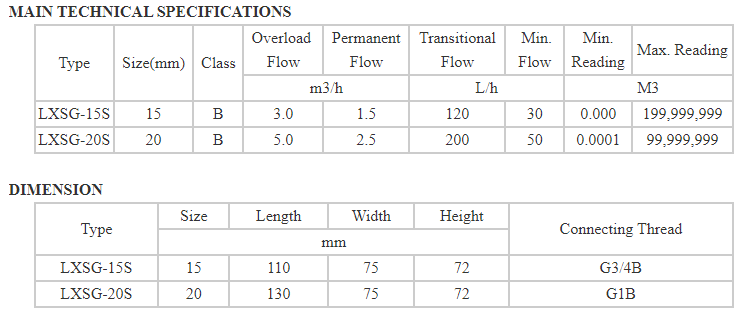

MAIN TECHNICAL DATA____________________________________________
