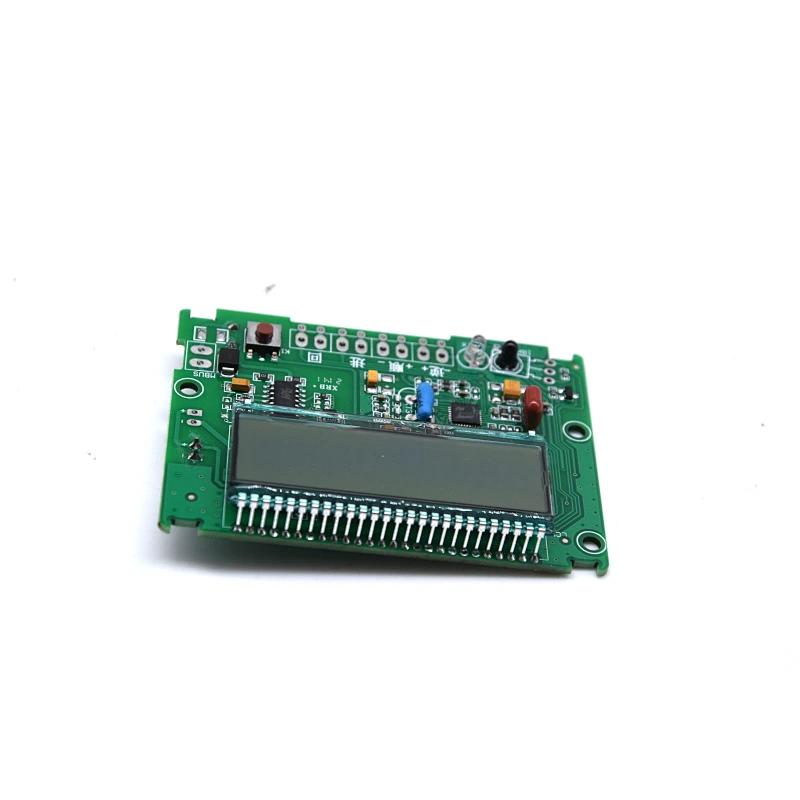

Ultrasonic Water Meter Electronic Master Board - MODULE

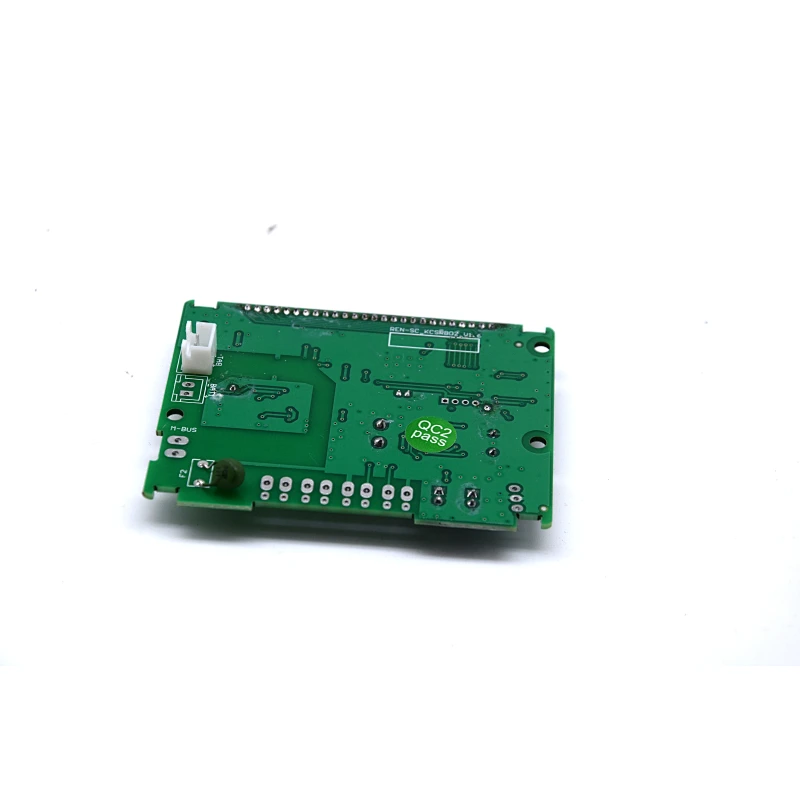

Ultrasonic Water Meter Electronic Master Board - MODULE
Ultrasonic Water Meter Electronic Master Board - MODULE
Ultrasonic Water Meter Electronic Master Board - MODULE
Ultrasonic Water Meter Electronic Master Board - MODULE
Ultrasonic Water Meter Electronic Master Board - MODULE
Ultrasonic Water Meter Electronic Master Board - MODULE
Ultrasonic Water Meter Electronic Master Board - MODULE
Ultrasonic Water Meter Electronic Master Board - MODULE

Ultrasonic Water Meter Electronic Master Board - MODULE

Model NO.
SRJ-311
Delivery
EXW,FCA,FOB
Supply Ability
50000 piece / Month
Country of Origin
Zhejiang, China
Stock Time
30 Days
Quantity:
Warranty:   1 year                                                                     Customized support:    OEM, ODM
Model Number: UWMM-11                                                    Product name: Ultrasonic water meter module
Type:Ultrasonic meters                                                            Keyword: PCB module
Size: DN15-DN40                                                                    Application: Measuring
Communication: RS485/Modbus                                           Material: PCB
Temperature: T30/T50                                                            Power supply: 3.6V Lithium
Communication mode: RS-485/M-BUS/Pulse/Lora/GPRS/GSM/NB-IoT
Packing: Cartons Box

1.   Technical Parameter

  Range ratio: R=250

  Accurate Class: Class 2

  Protocol: CJ-T188-208, EN1434, MODBUS

  Standard: ISO4064:2005 (GB/T778-2007)

  Comm. Port: MBUS, RS485, PULSE, or NB-IOT, LORAWAN

  Max working pressure: 1.6MPa

  Working environment: Temp:+5℃~+55℃; Humidity:<100%(RH)



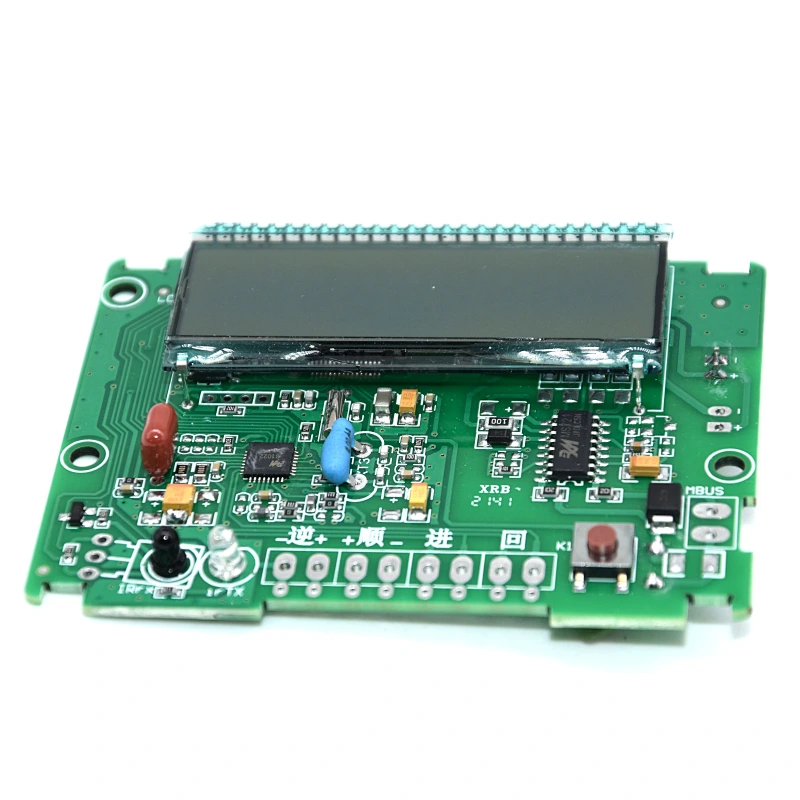

2.   Connection Instruction

1.       Connect with IN-FLOW transducer

2.       Connect with OUT-FLOW transducer

3.       Connect with Temp. sensor (NPT)

4.       Connect with MBUS cable

5.       Connect with battery

6.       Connect with RS485 cable

7.       Connect with TTL cable

3.   LCD Menu Instruction:

3.1.The ultrasonic water meter equipped with a 8 digital LCD, units and information flag.

Ultrasonic Water Meter Electronic Master Board - MODULE


The Meter has main menu and sub menu. There are two key operation, short push and long push. When need enter sub menu, long push more than 5 seconds. When need exit from sub menu, also long push. This push operation need magnetic parts.

3.2.   main menu




 Ultrasonic Water Meter Electronic Master Board - MODULE

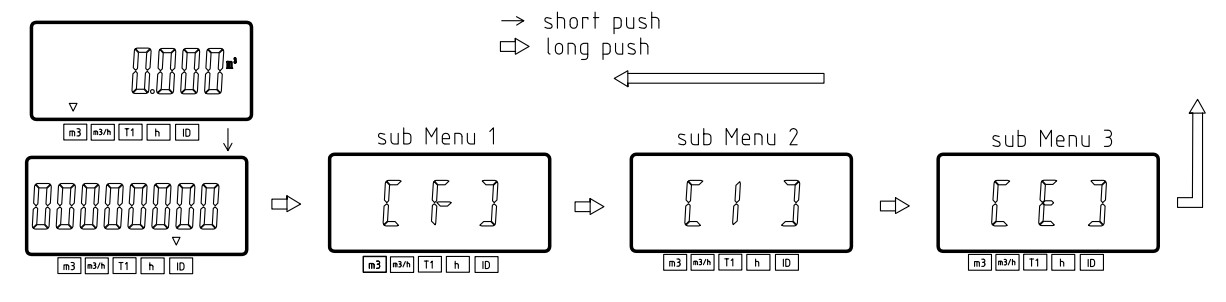

3.3.   Menu loop

 Ultrasonic Water Meter Electronic Master Board - MODULE

3.4.   sub menu 1

This sub menu is high resolution menu.

 Ultrasonic Water Meter Electronic Master Board - MODULE

3.5. sub menu 2

This menu contained information of time and 24 month data.

Ultrasonic Water Meter Electronic Master Board - MODULE

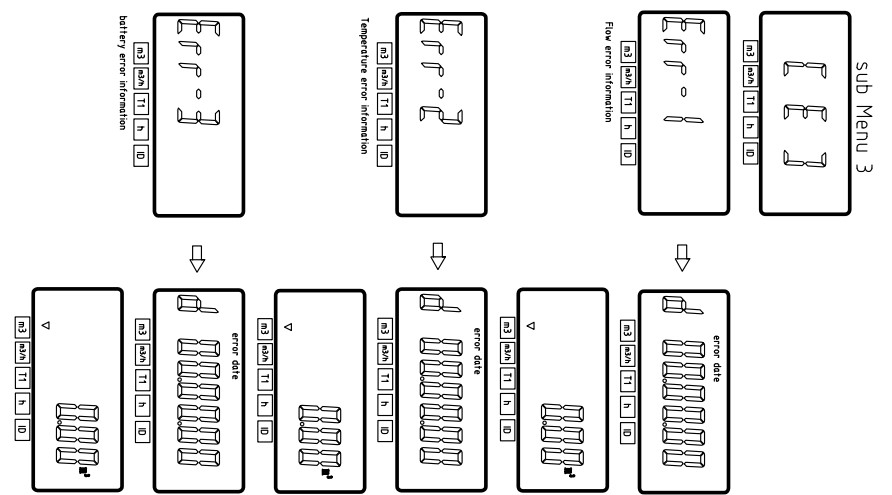

3.6. sub menu 3

This sub menu contains error information. When error occurred, the accumulated volume and the date will be saved.

 Ultrasonic Water Meter Electronic Master Board - MODULE
