Quick Details
Place of Origin:Zhejiang, China Brand Name:sierjia
Model Number:GSX4-MS-4G certificate:CE ROHS
Type:Room Temperature Thermostat Product name: Modbus Meter 4G Power Analyzer water meter modbus date collector
Supply Ability
Supply Ability 100000 Piece/Pieces per Month The water meter can be produced in a hurry
Packaging & Delivery
Packaging Details Conventional packing of water meter:OUTER CARTON: 10 pcs/ctn
INNER CARTON: 1 pc/ctn
Port Ningbo
Lead Time: 30days
APPLICATION __ Water__ _
[detail]
It is a 4G Modbus Data Logger with programmable I/O.
4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.
Overview:
* 2 Temperature Sensors (max.)
* 1 Humidity Sensor
* 2 Analog Channels (max.)
* 3 Digital Inputs
* 3 Pulse Channels
* 2 Relay Outputs
* Modbus RS485 Interface
* 8 Modbus Data Registers
Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.
FEATURES ________________________________________________________
1) Real Time 4G and SMS Data Upload
2) Integrated 16 bit MCU & Siemens 4G Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup over 4G mobile network
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9) Flexible AC/DC power with internal battery backup
[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via 4G mobile network
* food chain, storage, transport industry, building management

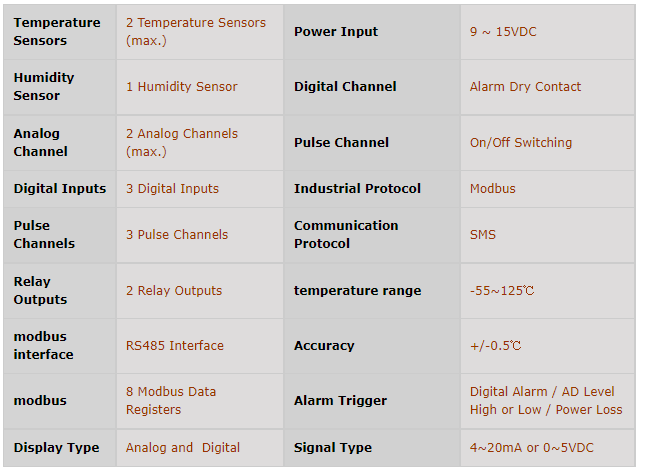

* agricultural, farming, laboratory, medical industry MAIN TECHNICAL DATA____________________________________________
