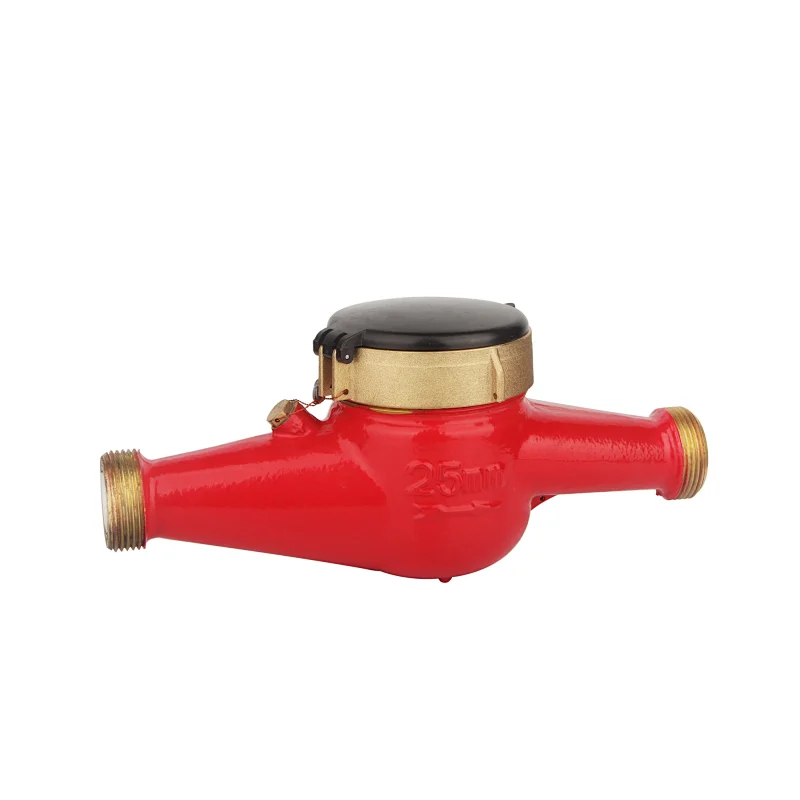

Quick DetailsPlace of Origin:Zhejiang, China Brand Name:SIERJIAModel Number:3005 certificate:CE ,ISOType:Water Meters Product name:Factory price high quality multi jet direct reading Environmentally friendly multi jet Brass Water MeterSupply AbilitySupply Ability 100000 Piece/Pieces per Month The water meter can be produced in a hurryPackaging & DeliveryPackaging Details Conventional packing of water meter:OUTER CARTON: 10 pcs/ctnINNER CARTON: 1 pc/ctnPort NingboLead Time: 30daysFactory price high quality multi jet direct reading Environmentally friendly multi jet Brass Water MeterAPPLICATION _____________________________________________________Measuring the volume of cold potable water passing through the pipelineFEATURES ________________________________________________________1. The structure is simple.
2. Easy to manufacture and maintain, low cost.
3. Durable, low water quality requirements.
4. The error is easy to adjust.
5. The flow ratio is relatively large.
6. The requirements for straight pipe section are low.
WORKING CONDITION______________________________________________Water temperature≤50 for cold water meterWater pressure≤1MPa or 1.6MPa optional(10bar or 16bar optional)MAXIMUM PERMISSIBLE ERROR____________________________________In the lower zone from Qmin inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%.MAIN TECHNICAL DATA____________________________________________
More Details
