Quick Details
Place of Origin:Zhejiang, China Brand Name:SIERJIA
Model Number:LXSG-13D certificate:CE
Type:Water Meters Product name:single jet dry hot water meter
Supply Ability
Supply Ability 100000 Piece/Pieces per Month The water meter can be produced in a hurry
Packaging & Delivery
Packaging Details Conventional packing of water meter:OUTER CARTON: 10 pcs/ctn
INNER CARTON: 1 pc/ctn
Port Ningbo
Lead Time: 30days

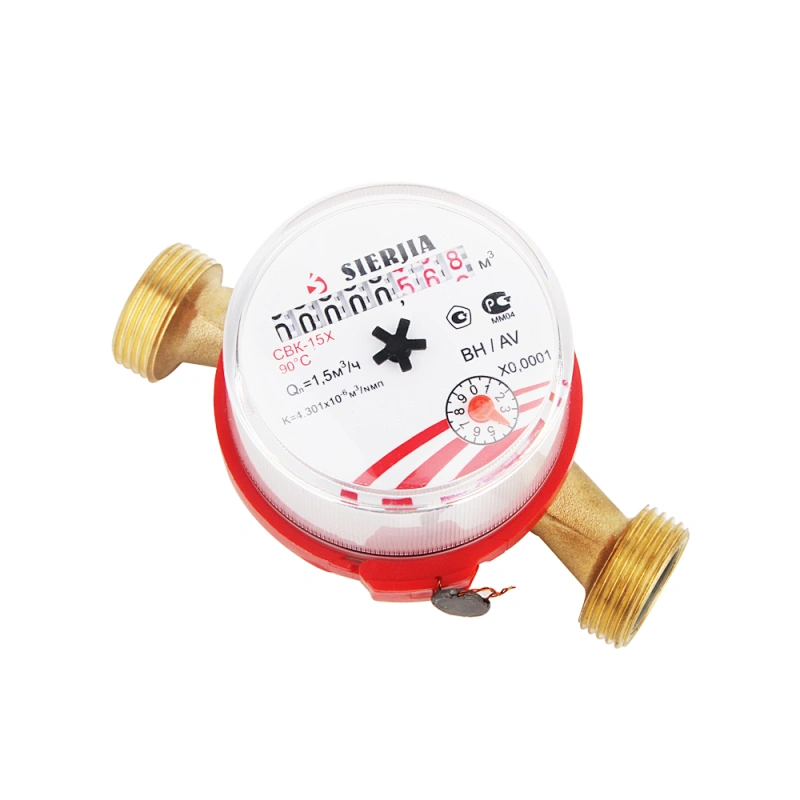

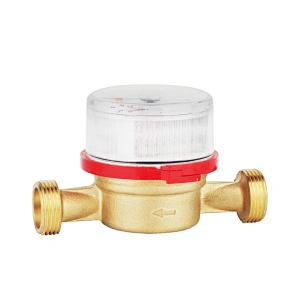

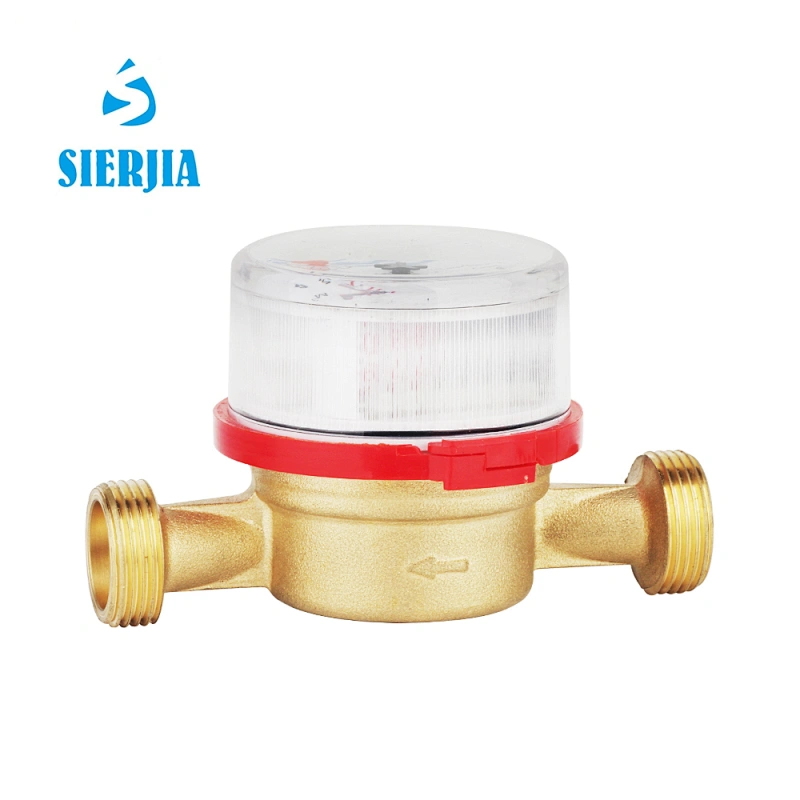

APPLICATION ___Single Jet Mini Water Meter______
Measuring the volume of cold potable water passing through the pipeline
FEATURES ________________________________________________________
1.Dry-dial,Magnetic drive,Resistance to exterior magnet interference
2.Single-jet
3.Selected high quality materials for steady & reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
WORKING CONDITION______________________________________________
Water temperature 90°c
Water pressure≤1MPa
(PN:1.6MPa/16bar)
MAXIMUM PERMISSIBLE ERROR____________________________________
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%

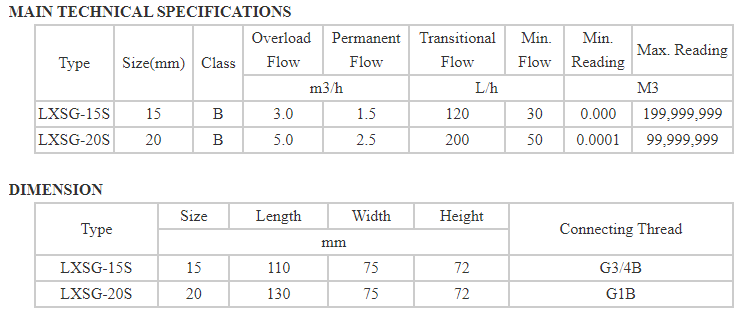

MAIN TECHNICAL DATA____________________________________________
