Quick Details
Place of Origin:Zhejiang, China Brand Name:SIERJIA
Model Number:3104 certificate：CE，ISO
Type:Turbine meters Product name:DN80 ultrasonic water meter
Supply Ability
Supply Ability 100000 Piece/Pieces per Month The water meter can be produced in a hurry
Packaging & Delivery
Packaging Details Conventional packing of water meter:OUTER CARTON: 10 pcs/ctn
INNER CARTON: 1 pc/ctn
Port Ningbo
Lead Time: 30days

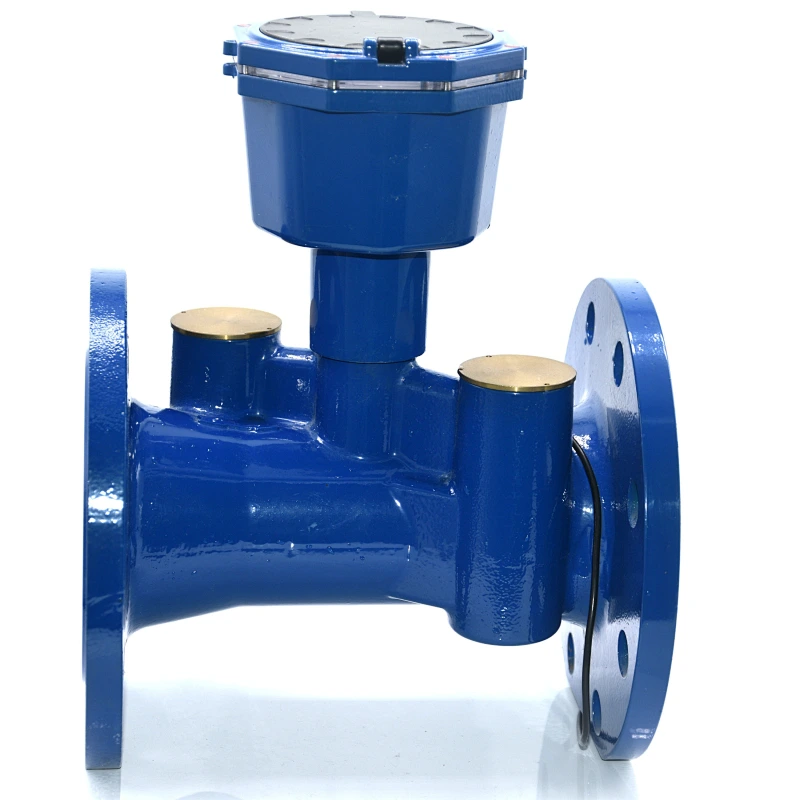

DN80 Class B large size Industrial Digital turbine agriculture irrigation woltman water meter
APPLICATION _____________________________________________________
Measuring the volume of cold potable water passing through the pipeline
FEATURES ________________________________________________________
- Removable measuring unit,inner slot web,easy maintenance
- Dry dial,magnetic drive,keeps clear reading for long time,register can be rotated
- Low start flow,low pressure loss at high flow-rate,better than vane wheel water meter
- From minimum flow-rate(qmin) inclusive,to transitional flow-rate(qt) exclusive:±5%
- Water temperature≤30℃;hot water meter≤90℃
- Water pressure≤1MPa,(PN:1.6MPa/16bar)
- ΔP≤0.01MPa
MAXIMUM PERMISSIBLE ERROR____________________________________
In the lower zone from Qmin inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%.
MAIN TECHNICAL DATA____________________________________________
