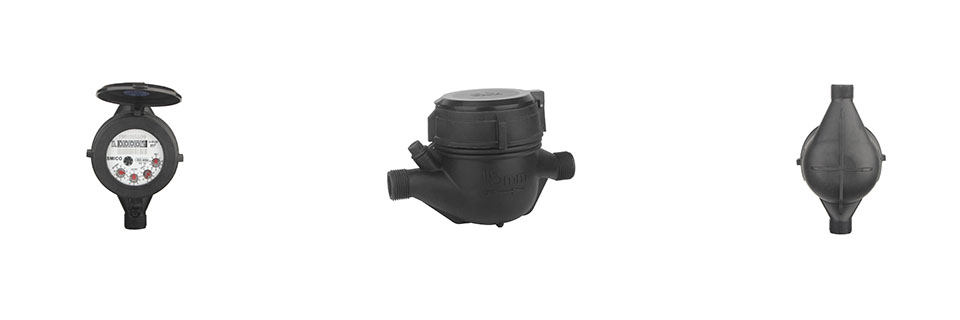

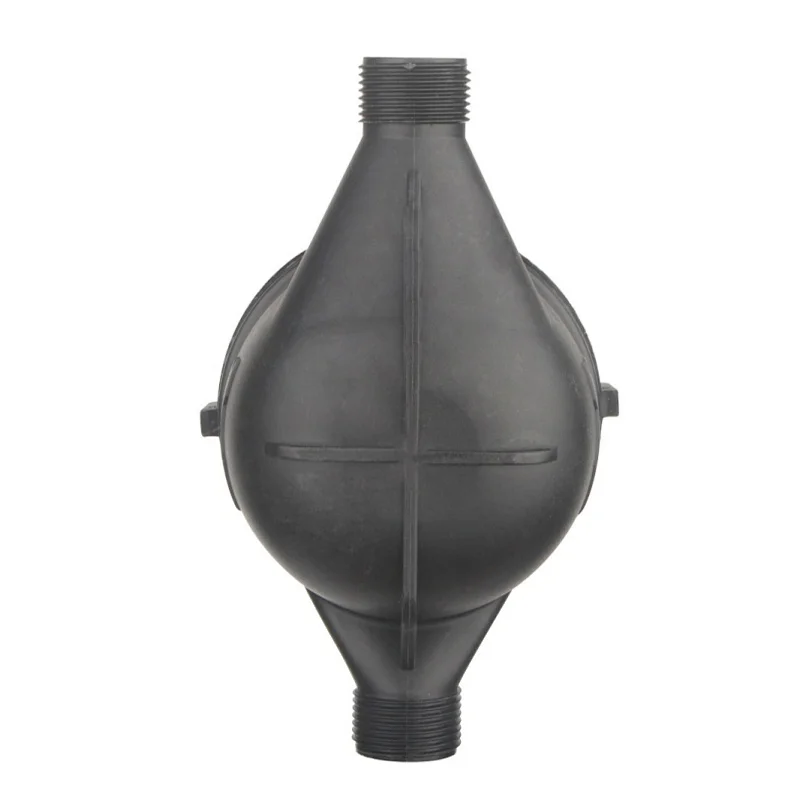

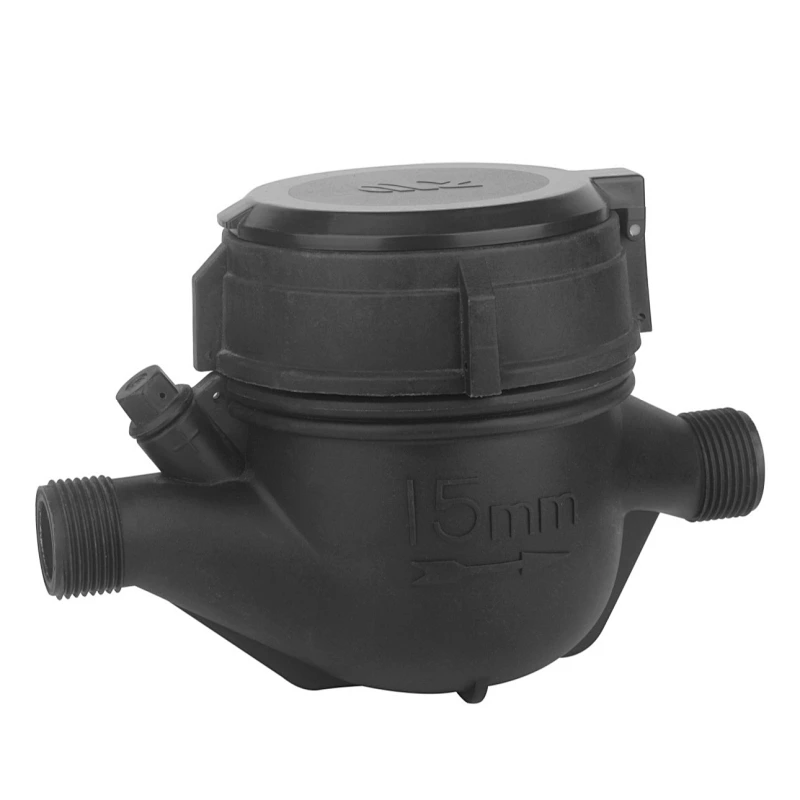

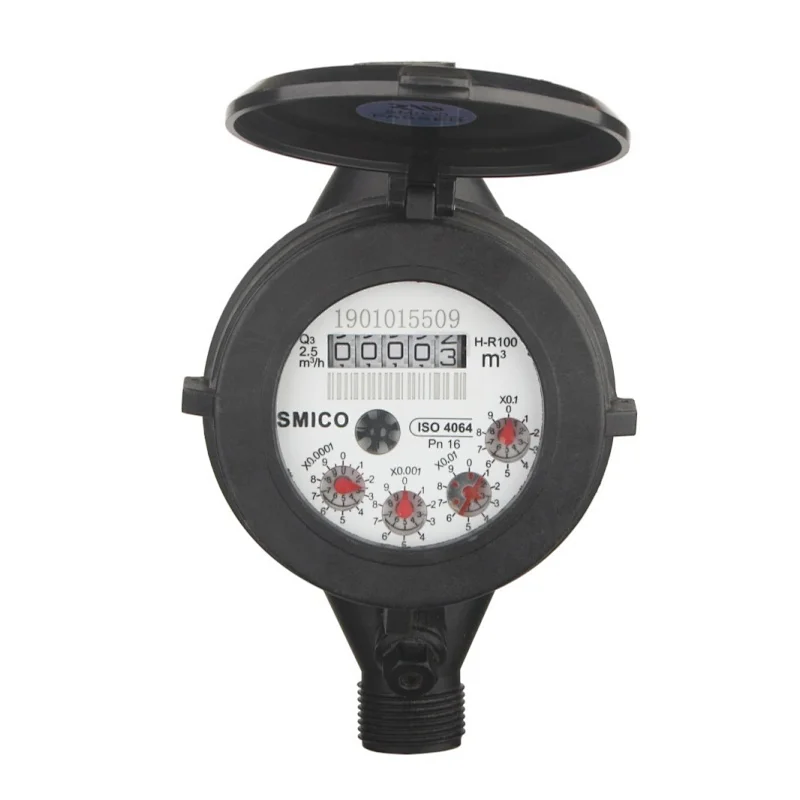

15mm Multi-jet Dry type Plastic( nylon) black color Water Meter
15mm Multi-jet Dry type Plastic( nylon) black color Water Meter
15mm Multi-jet Dry type Plastic( nylon) black color Water Meter
15mm Multi-jet Dry type Plastic( nylon) black color Water Meter
15mm Multi-jet Dry type Plastic( nylon) black color Water Meter
15mm Multi-jet Dry type Plastic( nylon) black color Water Meter
15mm Multi-jet Dry type Plastic( nylon) black color Water Meter

15mm Multi-jet Dry type Plastic( nylon) black color Water Meter

Model NO.
SRJ20201-2
Price:
US $ 4.50-6.00 / piece
Supply Ability:
8000 piece / Month
Country of Origin:
ZHEJIANG
Stock Time:
30 Days
Quantity:

Quick Details
Place of Origin:Zhejiang, China              Brand Name:SIERJIA
Model Number:LXSG15S~50S              certificate:CE,ISO
Type:Water Meters                          Product name:Multi-jet Dry type nylon Water Meter
Supply Ability
Supply Ability       100000 Piece/Pieces per Month The water meter can be produced in a hurry
Packaging & Delivery
Packaging Details   Conventional packing of water meter:OUTER CARTON: 10 pcs/ctn
INNER CARTON: 1 pc/ctn
Port                 Ningbo
Lead Time:          30days

APPLICATION  _____Measuring the volume of cold potable water_________

Measuring the volume of cold potable water passing through the  pipeline

FEATURES ________________________________________________________

1.Completely plastic shell, solid and robust design, long service guaranteed.

2.High quality materials fiberglass reinforced polymerization amine,corrosion resistance.

3.Pole ring magnet polymer coating as protection against deposits.

4.The measuring mechanism can be exchanged.

5.Anti-magnet.

6.Inside calibration device.

7.Large measuring range high flow accuracy.

8.Steady curve characteristics.

9.Measuring accuracy is up to ISO4064, Class B.

10.Overload flowrate: Qs=2Qp (Qn=nominal flowrate)

WORKING CONDITION______________________________________________
1.Water temperature: ≤90℃
2.Water pressure: ≤ 10bar (16 bar on request)
MAXIMUM PERMISSIBLE ERROR____________________________________
1.In the lower zone from qmin inclusive up to but excluding qt is ±5%
2.In the upper zone from qt inclusive up to and including qs is ±2%

MAIN TECHNICAL DATA____________________________________________
ModelCaliberClassQ4
(m3/h)
Q3
(m3/h)
Q2
(l/h)
Q1
(l/h)
Min Reading
(m3)
Max Reading
(m3)
LXSG-15S15231.5120300.000199999
LXSG-20S20252.5200500.000199999
