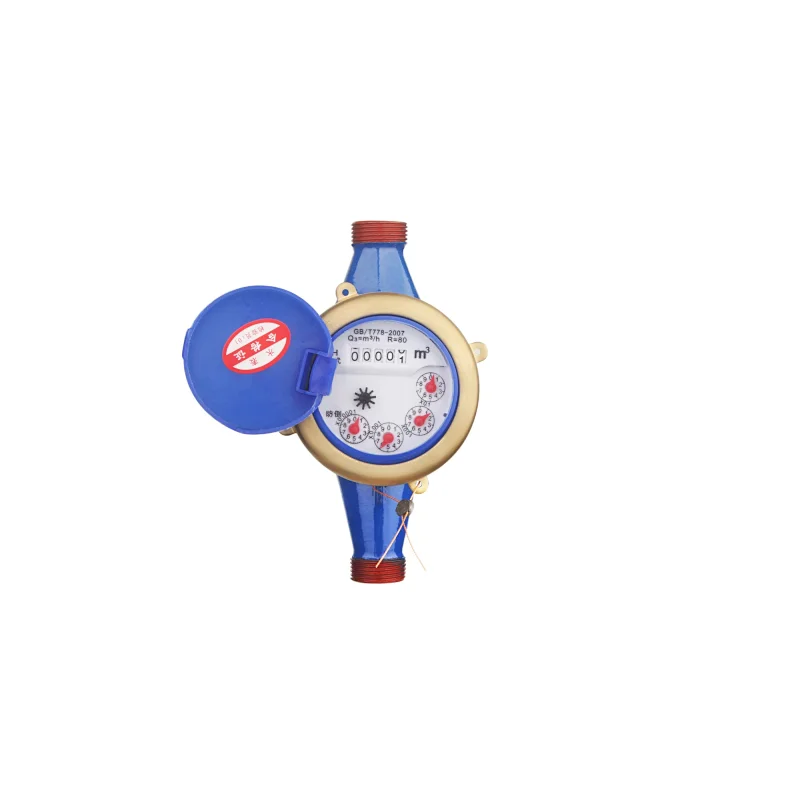

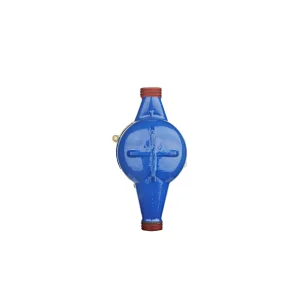

15mm iron multi-jet cold water meter dry water meter
15mm iron multi-jet cold water meter dry water meter
15mm iron multi-jet cold water meter dry water meter
15mm iron multi-jet cold water meter dry water meter
15mm iron multi-jet cold water meter dry water meter
15mm iron multi-jet cold water meter dry water meter
15mm iron multi-jet cold water meter dry water meter

15mm iron multi-jet cold water meter dry water meter

Model NO.
2004
Delivery:
EXW,FCA,FOB
Supply Ability:
10000 piece / Month
Country of Origin:
ZHEJIANG
Stock Time:
30 Days
Quantity:




Quick Details
Place of Origin:Zhejiang, China              Brand Name:Sierjia
Model Number:2004                    certificate:CE,ISO
Type:Water Meters                          Product name:15mm iron multi-jet cold water meter dry water meter
Supply Ability
Supply Ability       100000 Piece/Pieces per Month The water meter can be produced in a hurry
Packaging & Delivery
Packaging Details   Conventional packing of water meter:           OUTER CARTON: 10 pcs/ctn
INNER CARTON: 1 pc/ctn
Port                 Ningbo
Lead Time:          30days


APPLICATION  ________Multi-jet dry cold water meter_____________________________________________

Measuring the volume of cold potable water passing through the  pipeline

FEATURES ________________________________________________________
1/ Dry type, magnetic drive, antimagnetic function
2/ Pointer-roller indicator, easy and long term clear reading
3/ Frost resistance, long work life
4/ Available non-return valve, inlet strainer and pulse output on request.
5/ Class B water meter is available for 15mm (1/2 inch), 20mm (3/4 inch) and 25mm (1 inch).
6/ ISO 4064 & ISO 9001


WORKING CONDITION______________________________________________
Water meter temperature grade: T30, T50, T70, T90.
Pressure grade: MAP10
Pressure loss grade: Δ P63
Upstream disturbance grade: U5
Downstream disturbance grade: D0
MAXIMUM PERMISSIBLE ERROR____________________________________
In the lower zone from Qmin inclusive up to but excluding Qis ±5% _ In the upper zone from Qinclusive up to and including Qis: cold water meter ±2%, hot water  meter    ±3%.

MAIN TECHNICAL DATA____________________________________________
